Add Page Break in HTML print / for PDFKit (plus Avoid Page Break Inside)

2022-08-23 483 words 3 minutes

A HTML report that is going to be printable, and it has “sections” that should start in a new page.
Is there any way to put something in the HTML/CSS that will signal to the browser that it needs to force a page break (start a new page) at that point? Especially for creating a PDF with HTML and transfored by PDFKit.

Answers:

For print (Chris Doggett)

Can I force a page break in HTML printing? — Stack Overflow

Add a CSS class called “pagebreak” (or “pb”), like so:

1
2
3
@media print {
    .pagebreak { page-break-before: always; } /* page-break-after works, as well */
}

Then add an empty DIV tag (or any block element that generates a box) where you want the page break.

1
<div class="pagebreak"> </div>

It won’t show up on the page, but will break up the page when printing.

P.S. Perhaps this only applies when using -after (and also what else you might be doing with other <div>s on the page), but I found that I had to augment the CSS class as follows:

1
2
3
4
5
6
@media print {
    .pagebreak {
        clear: both;
        page-break-after: always;
    }
}

For PDFKit (Andrew)

Add a page break in html for PDFKit in Swift — Stack Overflow

By changing it to page-break-before instead of page-break-after it seems to work. This is what I changed your contextString to, I used a multiline string as it is easier to read and gave it some clearer content.

1
2
3
4
5
let contextString = """
<p>Content in page 1</p>
<p style=\"page-break-before: always;\"></p>
<p>Content in page 2</p>
"""

Here is a very simple example that you could drop into Xcode.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
class ViewController: UIViewController { let button = UIButton()
    override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.
        view.addSubview(button)
        button.translatesAutoresizingMaskIntoConstraints = false button.setTitle("Print", for: .normal)
        button.setTitleColor(.systemBlue, for: .normal)
        button.addTarget(self, action: #selector(tapped), for: .touchUpInside) NSLayoutConstraint.activate([
            button.centerXAnchor.constraint(equalTo: view.centerXAnchor),
            button.centerYAnchor.constraint(equalTo: view.centerYAnchor),
            button.leadingAnchor.constraint(equalTo: view.leadingAnchor, constant: 20),
        ])
        view.backgroundColor = .systemBackground
    } @objc func tapped() { let contextString = """
        <p>Content in page 1</p>
        <p style=\"page-break-before: always;\"></p>
        <p>Content in page 2</p>
        """ let print = UIMarkupTextPrintFormatter(markupText: contextString) let render = UIPrintPageRenderer()
        render.addPrintFormatter(print, startingAtPageAt: 0) let page = CGRect(x: 0, y: 0, width: 595.2, height: 841.8) // A4, 72 dpi
        render.setValue(page, forKey: "paperRect")
        render.setValue(page, forKey: "printableRect") let pdfData = NSMutableData()
        UIGraphicsBeginPDFContextToData(pdfData, .zero, nil) for i in 0..<render.numberOfPages {
        UIGraphicsBeginPDFPage();
            render.drawPage(at: i, in: UIGraphicsGetPDFContextBounds())
        }
        UIGraphicsEndPDFContext(); let av = UIActivityViewController(activityItems: [pdfData], applicationActivities: nil) self.present(av, animated: true, completion: nil)
    }
}

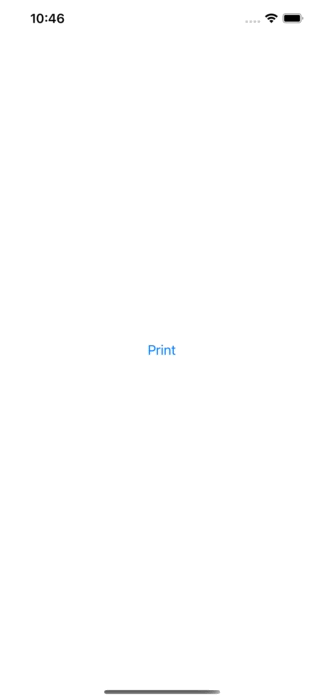

Here is a gif of it showing the two pages with the text:

Bonus:

use page-break-inside: avoid; to avoid page break inside
